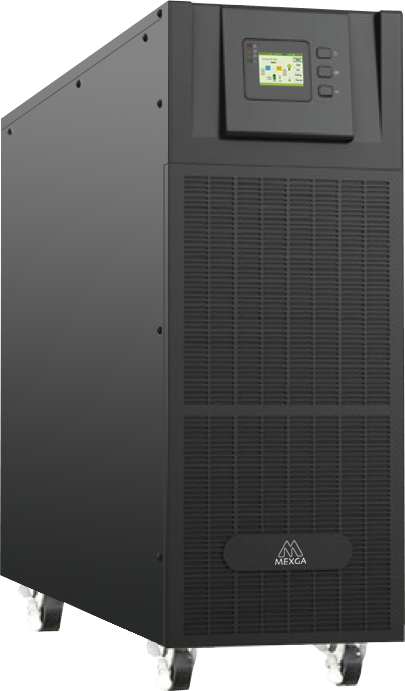

MEXGA UPS รุ่น UKT-10 ขนาด 10 kVA , 3 :1 and 1:1 Phase Configuration
- True on-line double conversion with DSP control
- N+x parallel redundancy up to 4 units
- Wind input range
- 50/60 Hz frequency converter mode
- support 3:1 and 1:1 operation
- Self-testing when UPS startup
- ECO mode operation for energy saving
- Cold start function
- Intelligent fan speed regulation
- LED indicator and large LCD display
- Generator compatible
Spcification
- 10 kVA / 9 kW (10 kW optional)
- Input Voltage 380 / 400 / 415 Vac (3Ph +N + PE) or 220 /230 /240 Vac (L+N+PE)
- Voltage range 208 - 478 Vac (L-L) or 120 - 276 Vac (L-N)
- Output Voltage: +/- 1%
- Power factor 0.9 (1 is optional)
- Efficiency 94.5%
BATTERY
Applications
- Internet service provider
- Computer data center
- Industrial automation
- Bank or security system
- Telecommunication system
- Transportation system
- Mission-critical equipments
Download
GREEN POWER- AC/AC efficiency up to 96%, less TCO and more energy saving
- Output power factor 0.9 or 1 (Option), more powerful to connect more critical loads
- 3 level IGBT technology for higher efficiency and minimized interference to grid
HIGH RELIABLE
- Super wide input voltage range -60%~+25% for higher grid adaptability
- Dual DSP control for top performance
- Intelligent fan speed control reduce noise and prolongs fan life
- Anti-corrosion resistant coating for all PCB boards
- Full protection with input, output, bypass, maintenance bypass and battery breaker
- ECO mode and EPO function
FLEXIBLE DESIGN
- Adjustable input and output
- Built-in battery and flexible battery configuration
- Common battery bank
- Easy onsite parallel slot modification
- Wheel design
