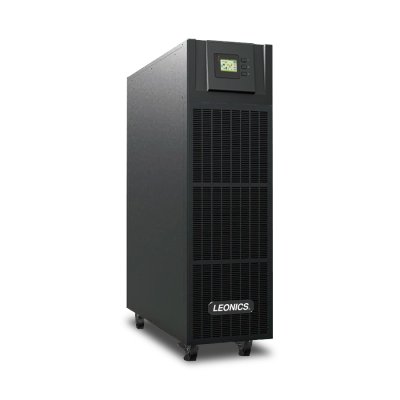

LEONICS UPS รุ่น UKT-40 ขนาด 40 kVA (3:3)

LEONICS UPS รุ่น UKT-40 ขนาด 40 kVA  , 3 :3 phase

• Transformerless True On-line UPS
• High reliablity design
• High input power factor (Input PF > 0.99)
• N+x parallel redundancy up to 4 units
• Wide input voltage range
• UPS startup without battery
• Advanced battery management
• Automatic battery charging in UPS off mode
• Lightning and surge protection
• Short circuit and overload protection
• ECO mode operation
• 3-phase UPS allow 100% unbalance load

• LED indicator and large LCD display
• SNMP/HTTP capability (option)

Spcification

• 40 kVA / 36 kW

• 3:3 phase
• Input Voltage 380 / 400 / 415 Vac (3Ph +N + PE)

• Output Voltage: 380/400/415Vac  +/- 1%
• Output Frequency  50Hz +/- 0.1% Hz

• Efficiency 95.2%

BATTERY

• 12Vdc 9Ah  จำนวน 60 ลูก

Applications

• Internet service provider
• Computer data center

• Industrial automation
• Bank or security system
• Telecommunication system
• Transportation system
• Mission-critical equipments

Download

• Brochure
