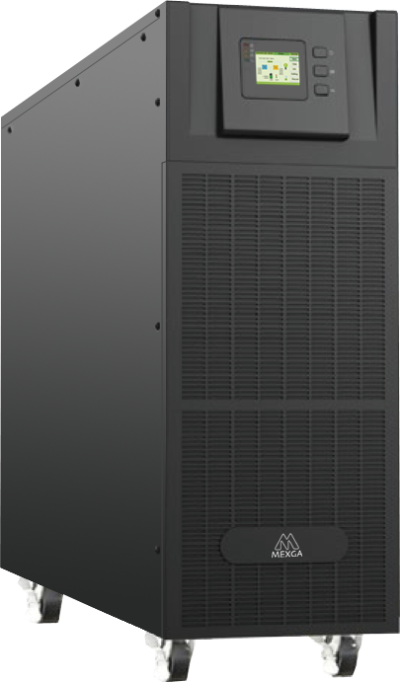

MEXGA UPS รุ่น UKT-10 ขนาด 10 kVA 9 kW (10kW optional) (3:1 / 1:1 Phase)

MEXGA UPS รุ่น UKT-10 ขนาด 10 kVA  , 3 :1 and 1:1 Phase Configuration

• True on-line double conversion with DSP control

• N+x parallel redundancy up to 4 units
• Wind input range
• 50/60 Hz frequency converter mode
• support 3:1 and 1:1 operation

• Self-testing when UPS startup
• ECO mode operation for energy saving
• Cold start function

• Intelligent fan speed regulation
• LED indicator and large LCD display
• Generator compatible


Spcification

• 10 kVA / 9 kW (10 kW optional)

• Input Voltage 380 / 400 / 415 Vac (3Ph +N + PE) or 220 /230 /240 Vac (L+N+PE)

• Voltage range 208 - 478 Vac (L-L) or 120 - 276 Vac (L-N)
• Output Voltage:  +/- 1%

• Power factor  0.9 (1 is optional)
• Efficiency 94.5%

BATTERY

• 12Vdc 9Ah  จำนวน 20 ลูก

Applications

• Internet service provider
• Computer data center

• Industrial automation
• Bank or security system
• Telecommunication system
• Transportation system
• Mission-critical equipments

Download

• Brochure
